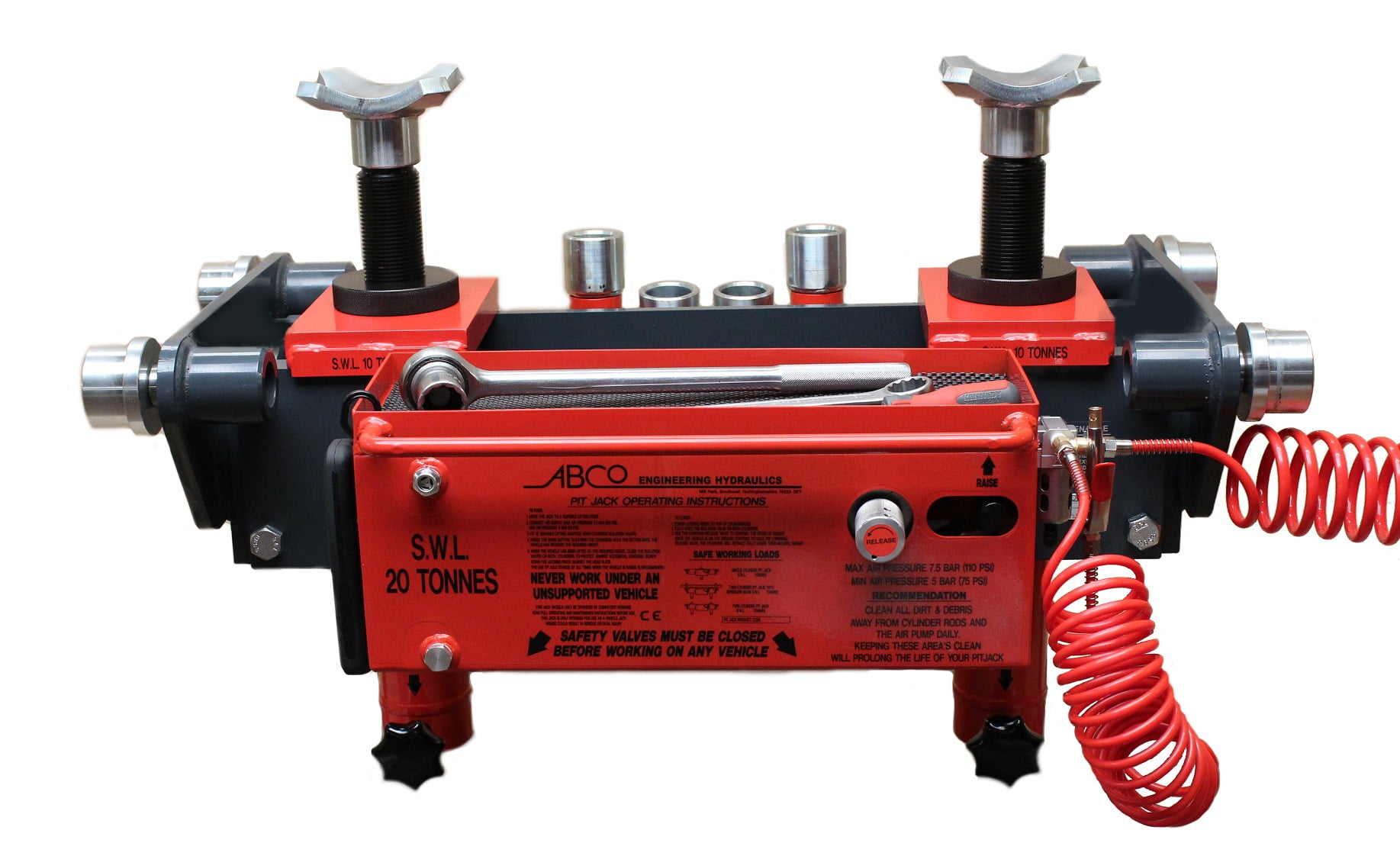

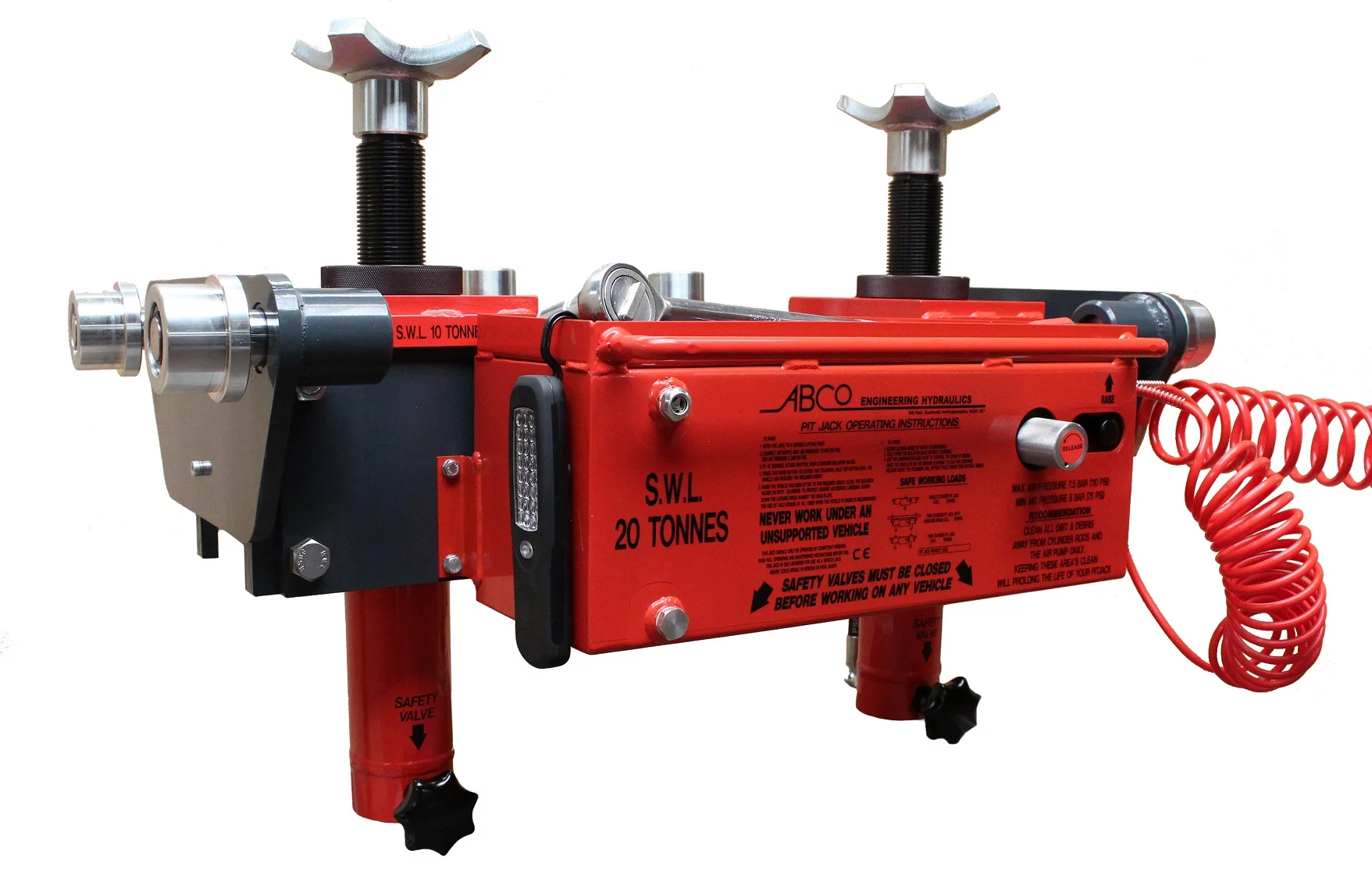

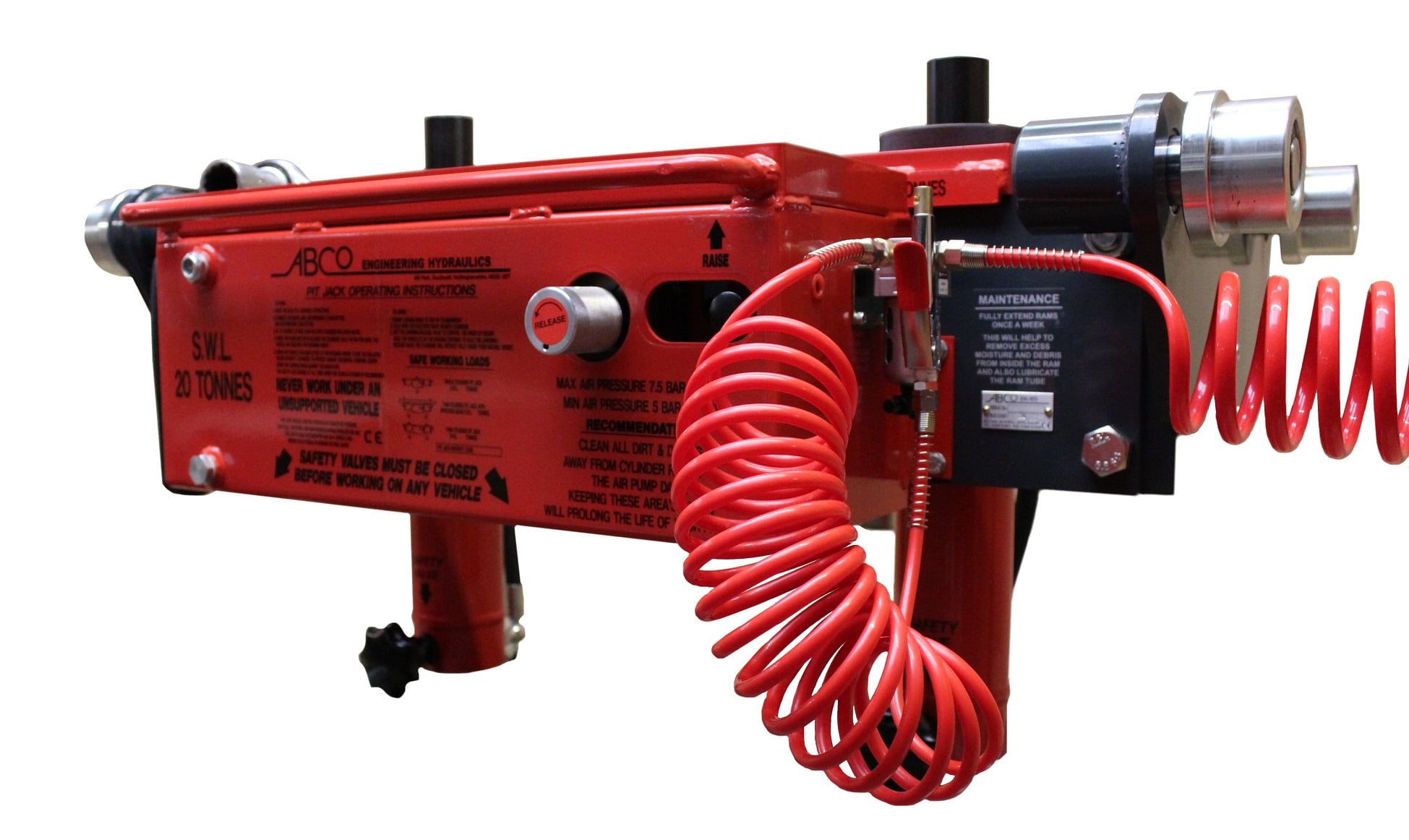

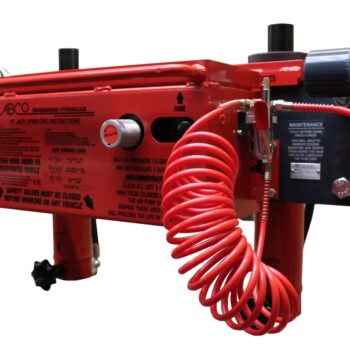

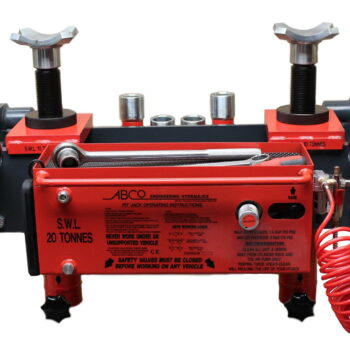

ABCo 20 Tonne Threaded Rod with Locking Collar Commercial Pit Jack

SKU: PJ013 Category:
  • Full 300mm lifting stroke
  • Air operation lifts with minimal effort
  • Manufactured to suit pit widths and air supply position
  • Isolation valve on each ram which can be operated independently
  • Mechanical locking collar for added safety
  • Adaptor kit included
  • 5 Year Warranty (T&C’s apply)





£3,755.45 +VAT

Dealer rates are available - please contact us for more information

PIT JACK ORDERS WILL NOT BE PROCESSED WITHOUT A COMPLETED PIT SURVEY FORM

Description

ABCo Commercial Pit Jacks are operated via an air operated hydraulic pump. This high output air pump delivers a rapid advance and controlled lift. A spring loaded lowering valve offers protection against overloading and accidental lowering. The pump unit will operate on air pressures from 6 bar (85psi) to 8.5 bar (125psi). Our jack is also fitted with a water trap/air filter as standard to prevent potential corrosion.

The twin threaded rod spring return cylinders each have a lifting stroke of 300mm and are fitted with high performance seals. Each cylinder is also fitted with an isolation valve allowing for independent operation as well as hose burst valve as an extra safety measure, locking off the rams should there be a hose failure.

A mechanical locking collar is also present on each ram which screws up and down the threaded rod. Once locked down to the headplate it offers an additional level of safety, ideal for longer working periods when the vehicle has to be raised for some time. Please note that we recommend the use of axle stands whilst the vehicle is raised.

Operation couldn’t be simpler due to the easy-to-use pneumatic push button controls for the raising of the rams and a release valve for lowering. Once the load has been lowered to ground level, the internal springs within the cylinders will bring the Pit Jack to resting point, fully retracted.

We manufacture our Pit Jacks to suit your particular needs by selecting the correct frame to fit your pit width. Our heavy-duty frames are built with the highest-quality steels to ensure durability. ABCo Commercial Pit Jacks are also fitted with zinc plated steel rollers which include roller bearings for ease of movement. Rollers have an additional 50mm of adjustment for precise installation inside the pit rails.

The position of the air supply is by standard on the right-hand side of the Pit Jack however as an optional extra, we can fit this on to the left-hand side to suit your air supply position. This prevents the air line being across the front of the jack.

We will receive this information from you once you have completed and emailed our Pit Survey Form back to us.

Each Jack includes: 2 x 150mm Extension Adaptors, 2 x 300mm Extension Adaptors, 2 x Vee Adaptors, 2 x Dished Crutch Adaptors, Adaptor Carrier Plate, 5m Coiled Air Line with PCL Adaptor, Operating/Parts Manual & Certificate of Test & Conformity.

*Left-Hand Supply Kit Available as Optional Extra*

Our Commercial Pit Jacks are British manufactured at our Nottinghamshire factory.





Pit Jack Extended 5 Year Limited Warranty



Year 1 Full parts cover

Any part failing from faulty materials or workmanship within the first 12 months from date of purchase will be replaced/repaired free of charge. Accidental and water damage of any component will not be covered by the warranty and will be fully chargeable (all repairs will be quoted before being carried out) e.g. damaged cylinder rods, internal water damage, damaged isolation/release valves etc.



Year 2-5 Limited parts cover

Any part failing from faulty materials or workmanship, between month 13 to 60 from date of purchase will be replaced/repaired free of charge. Excluded from the above statement are consumable wearing parts: seals (cylinder, pump and valve), bearings, lifting adaptors, internal air pump components, air pipes, hydraulic hoses, any part suffering from accidental or water damage.



In order to ensure a long service life and continued warranty support on your jack, it must be kept in good working order and all operating parameters must be adhered to e.g. water trap intact and drained, correct operating air pressure and the jack kept clean, etc.

Details of weekly maintenance are included in the Pit Jack Operating Manual.

Failure to comply with the operating parameters and weekly maintenance instruction may invalidate your warranty.

Please see our Terms & Conditions for further information.



Description

ABCo Commercial Pit Jacks are operated via an air operated hydraulic pump. This high output air pump delivers a rapid advance and controlled lift. A spring loaded lowering valve offers protection against overloading and accidental lowering. The pump unit will operate on air pressures from 6 bar (85psi) to 8.5 bar (125psi). Our jack is also fitted with a water trap/air filter as standard to prevent potential corrosion.

The twin threaded rod spring return cylinders each have a lifting stroke of 300mm and are fitted with high performance seals. Each cylinder is also fitted with an isolation valve allowing for independent operation as well as hose burst valve as an extra safety measure, locking off the rams should there be a hose failure.

A mechanical locking collar is also present on each ram which screws up and down the threaded rod. Once locked down to the headplate it offers an additional level of safety, ideal for longer working periods when the vehicle has to be raised for some time. Please note that we recommend the use of axle stands whilst the vehicle is raised.

Operation couldn’t be simpler due to the easy-to-use pneumatic push button controls for the raising of the rams and a release valve for lowering. Once the load has been lowered to ground level, the internal springs within the cylinders will bring the Pit Jack to resting point, fully retracted.

We manufacture our Pit Jacks to suit your particular needs by selecting the correct frame to fit your pit width. Our heavy-duty frames are built with the highest-quality steels to ensure durability. ABCo Commercial Pit Jacks are also fitted with zinc plated steel rollers which include roller bearings for ease of movement. Rollers have an additional 50mm of adjustment for precise installation inside the pit rails.

The position of the air supply is by standard on the right-hand side of the Pit Jack however as an optional extra, we can fit this on to the left-hand side to suit your air supply position. This prevents the air line being across the front of the jack.

We will receive this information from you once you have completed and emailed our Pit Survey Form back to us.

Each Jack includes: 2 x 150mm Extension Adaptors, 2 x 300mm Extension Adaptors, 2 x Vee Adaptors, 2 x Dished Crutch Adaptors, Adaptor Carrier Plate, 5m Coiled Air Line with PCL Adaptor, Operating/Parts Manual & Certificate of Test & Conformity.

*Left-Hand Supply Kit Available as Optional Extra*

Our Commercial Pit Jacks are British manufactured at our Nottinghamshire factory.





Pit Jack Extended 5 Year Limited Warranty



Year 1 Full parts cover

Any part failing from faulty materials or workmanship within the first 12 months from date of purchase will be replaced/repaired free of charge. Accidental and water damage of any component will not be covered by the warranty and will be fully chargeable (all repairs will be quoted before being carried out) e.g. damaged cylinder rods, internal water damage, damaged isolation/release valves etc.



Year 2-5 Limited parts cover

Any part failing from faulty materials or workmanship, between month 13 to 60 from date of purchase will be replaced/repaired free of charge. Excluded from the above statement are consumable wearing parts: seals (cylinder, pump and valve), bearings, lifting adaptors, internal air pump components, air pipes, hydraulic hoses, any part suffering from accidental or water damage.



In order to ensure a long service life and continued warranty support on your jack, it must be kept in good working order and all operating parameters must be adhered to e.g. water trap intact and drained, correct operating air pressure and the jack kept clean, etc.

Details of weekly maintenance are included in the Pit Jack Operating Manual.

Failure to comply with the operating parameters and weekly maintenance instruction may invalidate your warranty.

Please see our Terms & Conditions for further information.



Click here to download Pit Survey Form - please send completed form by email to: sales@abcohydraulics.com

Technical Information

Specifications
  • ABCo manufactured high-quality spring return cylinders
  • Maximum lifting stroke of 300mm
  • Single unit tank incorporates: air motor, pneumatic up button and release valve
  • Fitted with water trap/air filter
  • Adjustable zinc plated rollers with needle roller bearings*
  • Frame sizes available to cover 850mm to 1200mm pit widths although fixed frames can be manufactured to suit widths outside this range

*tapered rollers can be provided if required

Maintenance
  • British designed and manufactured to ensure minimal maintenance - officially Made in Britain
Safety
  • Hydraulic isolation valve on each ram
  • Hydraulic hose burst valve
  • Mechanical locking collar
  • Operating/parts manual
  • Certificate of Test & Conformity
Service
  • We offer a full factory service, test and certification
  • Test certification complies with lifting regulations (LOLER)
  • All replacement parts available
  • 5 Year Warranty (T&C's Apply)
Includes
  • 2 x 150mm Extension Adaptors
  • 2 x 300mm Extension Adaptors
  • 2 x Vee Adaptors
  • 2 x Dished Crutch Adaptors
  • 5m Coiled Air Line with PCL Adaptor

*Adaptor Carrier Plate & Left Hand Supply Kit Available as Optional Extra*

Product Code
PJ013
Capacity
20 Tonnes
Max Lift Height
300mm
Frame Size
Standard frame sizes available to cover 850mm-1200mm although can be manufactured to suit sizes outside of this range
Includes
2 x 150mm Extension Adaptors, 2 x 300mm Extension Adaptors, 2 x Vee Adaptors, 2 x Dished Crutch, Adaptors, 5m Coiled Air Line with PCL Adaptor
Weight
250kg

Download the Pit Jack Operating Manual for more information.

Download

Additional information

Weight 250 kg

Reviews

There are no reviews yet.

Be the first to review “ABCo 20 Tonne Threaded Rod with Locking Collar Commercial Pit Jack”
