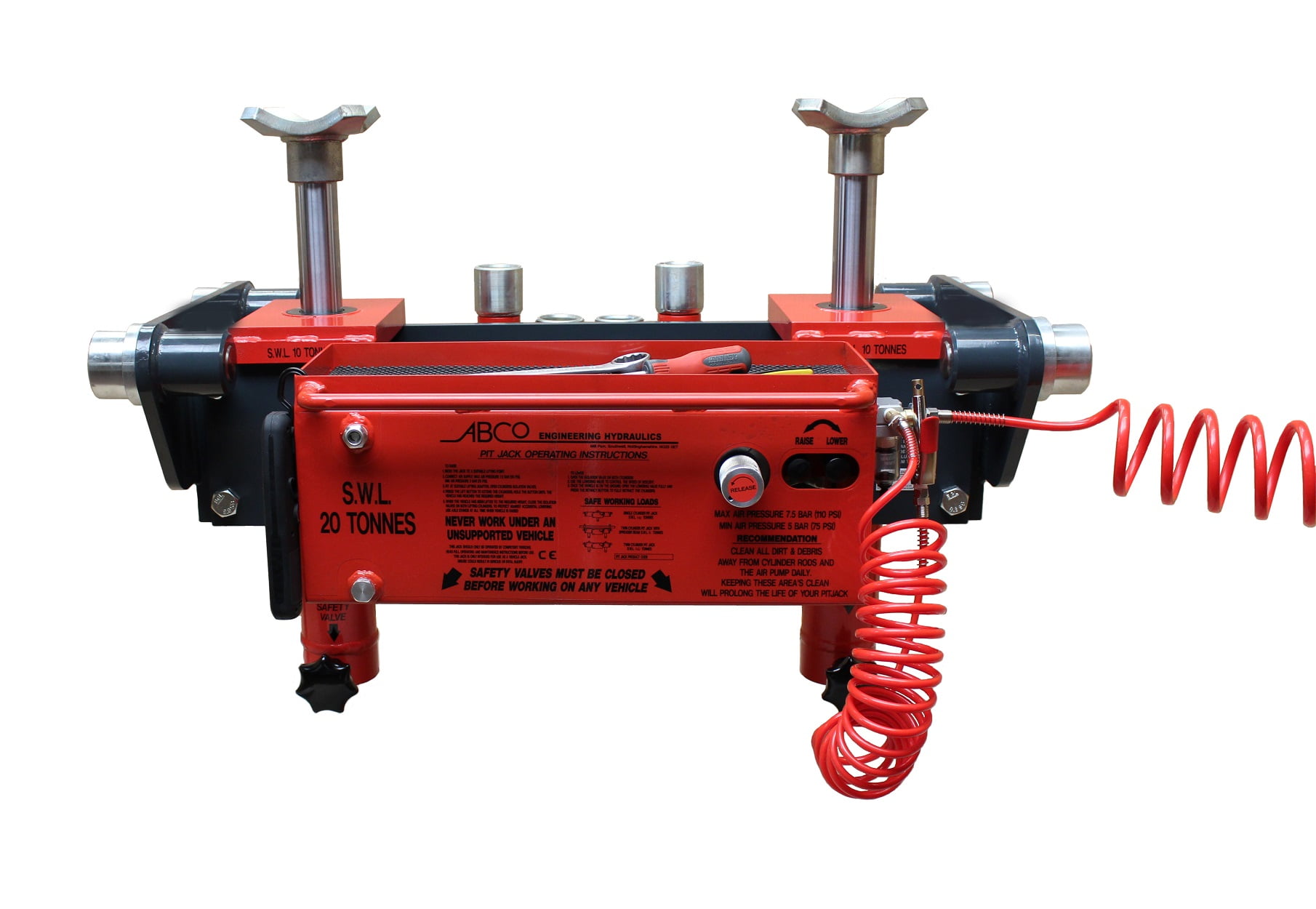

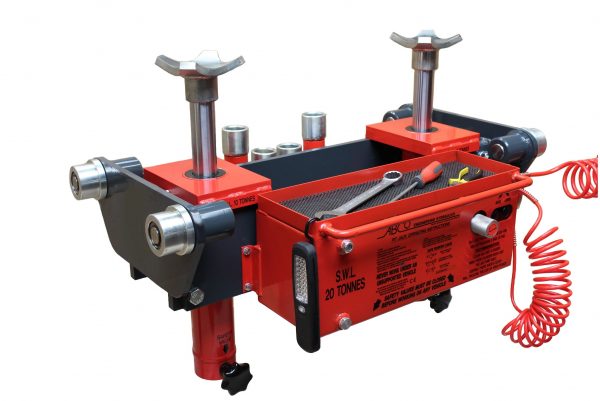

ABCo Commercial Pit Jacks are operated via an air operated hydraulic pump. This high output air pump delivers a rapid advance and controlled lift. A spring loaded lowering valve and integral relief valve offers protection against overloading and accidental lowering. The pump unit will operate on air pressures from 6 bar (85psi) to 8.5 bar (125psi). Our jack is also fitted with a water trap/air filter as standard to prevent potential corrosion.
The twin chrome rod cylinders each have a lifting stroke of 400mm and are fitted with high performance seals. Each cylinder is also fitted with an isolation valve allowing for independent operation as well as hose burst valve as an extra safety measure.
Operation couldn’t be simpler due to the easy to use pneumatic push button controls for the raising and lowering of the rams. Please note that we recommend the use of axle stands whilst the vehicle is raised.

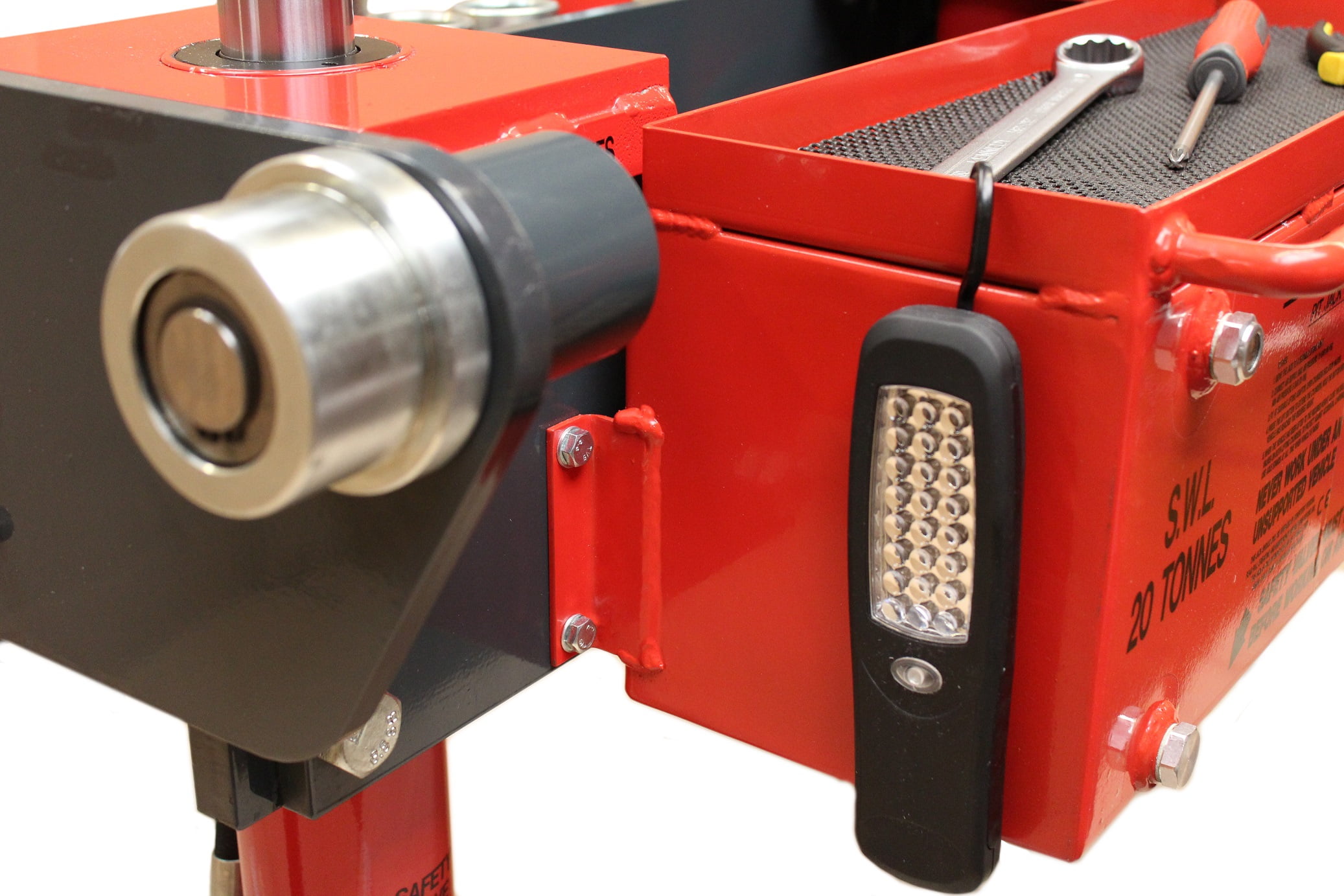

We manufacture our Pit Jacks to suit your particular needs by selecting the correct frame to fit your pit width. Our heavy duty frames are built with the highest-quality steels to ensure durability. ABCo Commercial Pit Jacks are also fitted with zinc plated steel roller bearings for ease of movement. Rollers have an additional 50mm of adjustment for precise installation inside the pit rails.
The position of the air supply is by standard on the right hand side of the Pit Jack however as an optional extra, we can fit this on to the left hand side to suit your air supply position. This prevents the air line being across the front of the jack.
We will receive this information from you once you have completed and emailed our Pit Jack Survey Form back to us.
Each Jack includes: 2 x 150mm Extension Adaptors, 2 x Vee Adaptors, 2 x Dished Crutch Adaptors, 5m Coiled Air Line with PCL Adaptor, Operating/Parts Manual & Certificate of Test & Conformity.
*Adaptor Carrier Plate & Left Hand Supply Kit Available as Optional Extra*
Our Commercial Pit Jacks are British manufactured at our Nottinghamshire factory.
Please look below for an exploded view of the product
Pit Jack Extended 5 Year Limited Warranty
||Full parts cover
Any part failing from faulty materials or workmanship within the first 12 months from date of purchase will be replaced/repaired free of charge. Accidental and water damage of any component will not be covered by the warranty and will be fully chargeable (all repairs will be quoted before being carried out) e.g. damaged cylinder rods, internal water damage, damaged isolation/release valves etc.
||Limited parts cover
Any part failing from faulty materials or workmanship, between month 13 to 60 from date of purchase will be replaced/repaired free of charge. Excluded from the above statement are consumable wearing parts: seals (cylinder, pump and valve), bearings, lifting adaptors, internal air pump components, air pipes, hydraulic hoses, any part suffering from accidental or water damage.
In order to ensure a long service life and continued warranty support on your jack, it must be kept in good working order and all operating parameters must be adhered to e.g. water trap intact and drained, correct operating air pressure and the jack kept clean, etc.
Details of weekly maintenance are included in the operating manual. Failure to comply with the operating parameters and weekly maintenance instruction may invalidate your warranty.
Please see our Terms & Conditions for further information.
