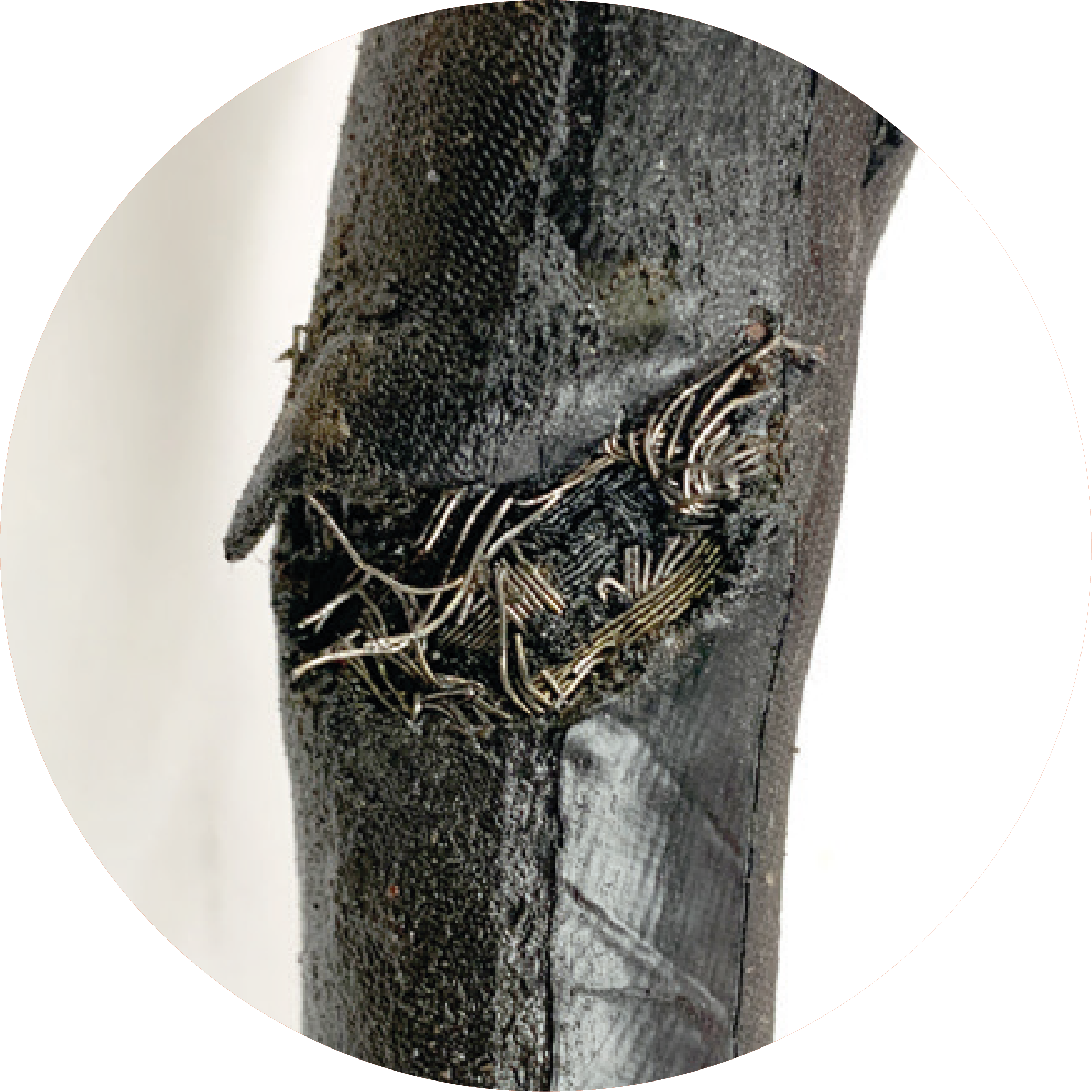

Burst or leaking hose?
Give Us a Call Today!

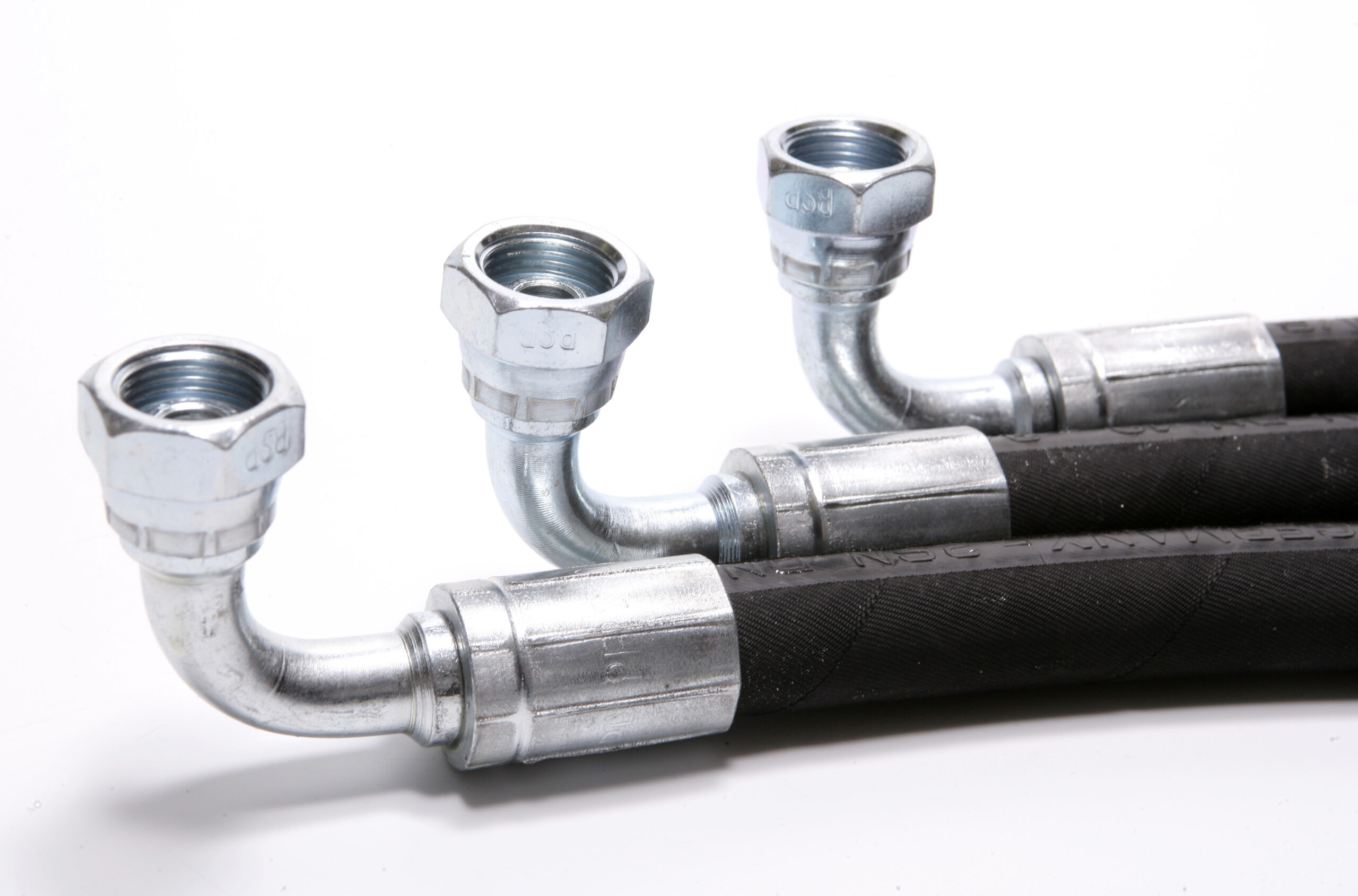

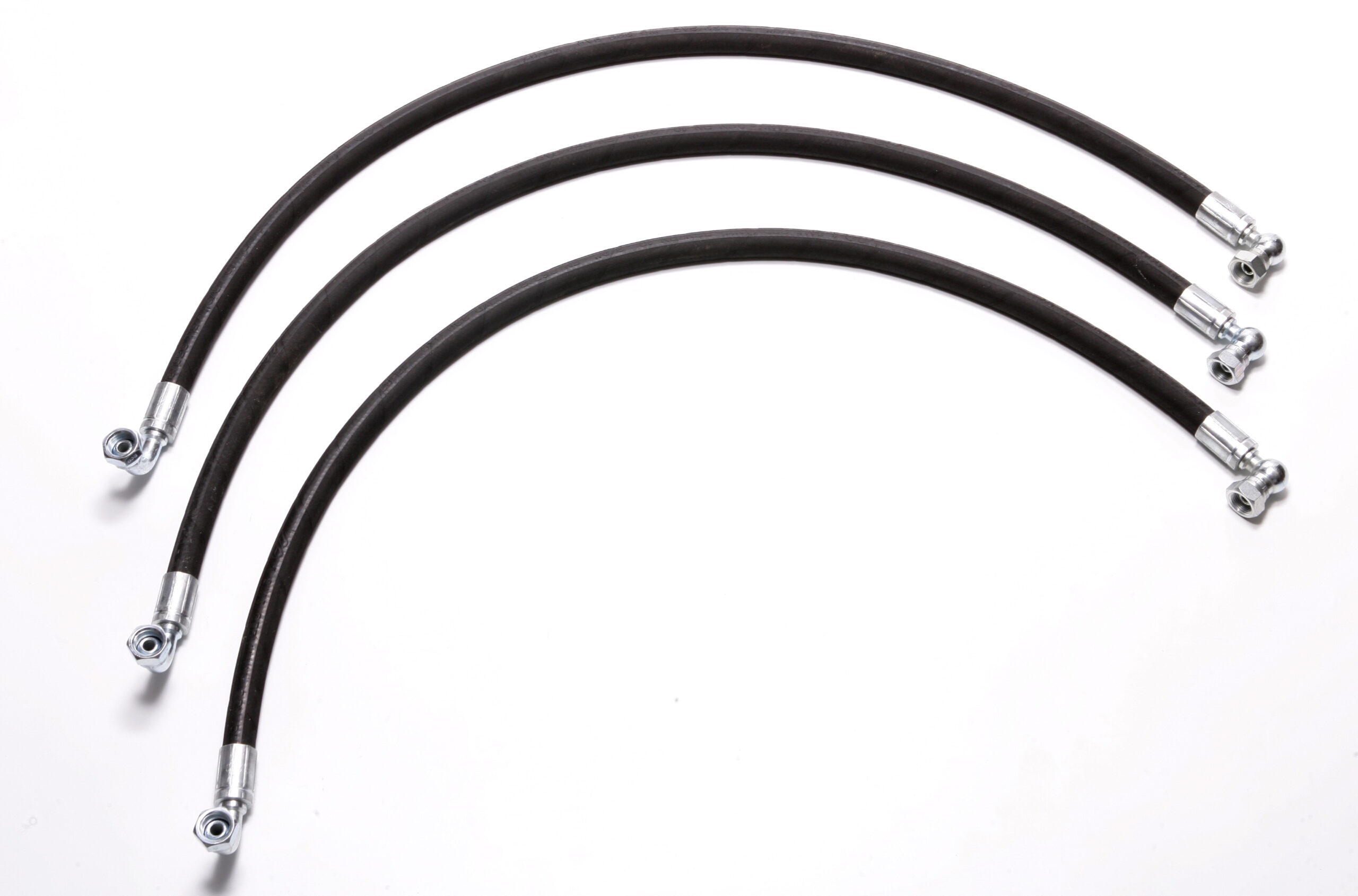

We can manufacture and assemble many variations of hose from our facilities in Nottinghamshire.

You can supply specification details of the hose you require e.g hose size, type, length, fittings etc. Alternatively you can supply a sample of the damaged hose.

How to book a replacement

You can contact us by phone, email or you can visit our factory in Southwell.
Book your Hose Replacement

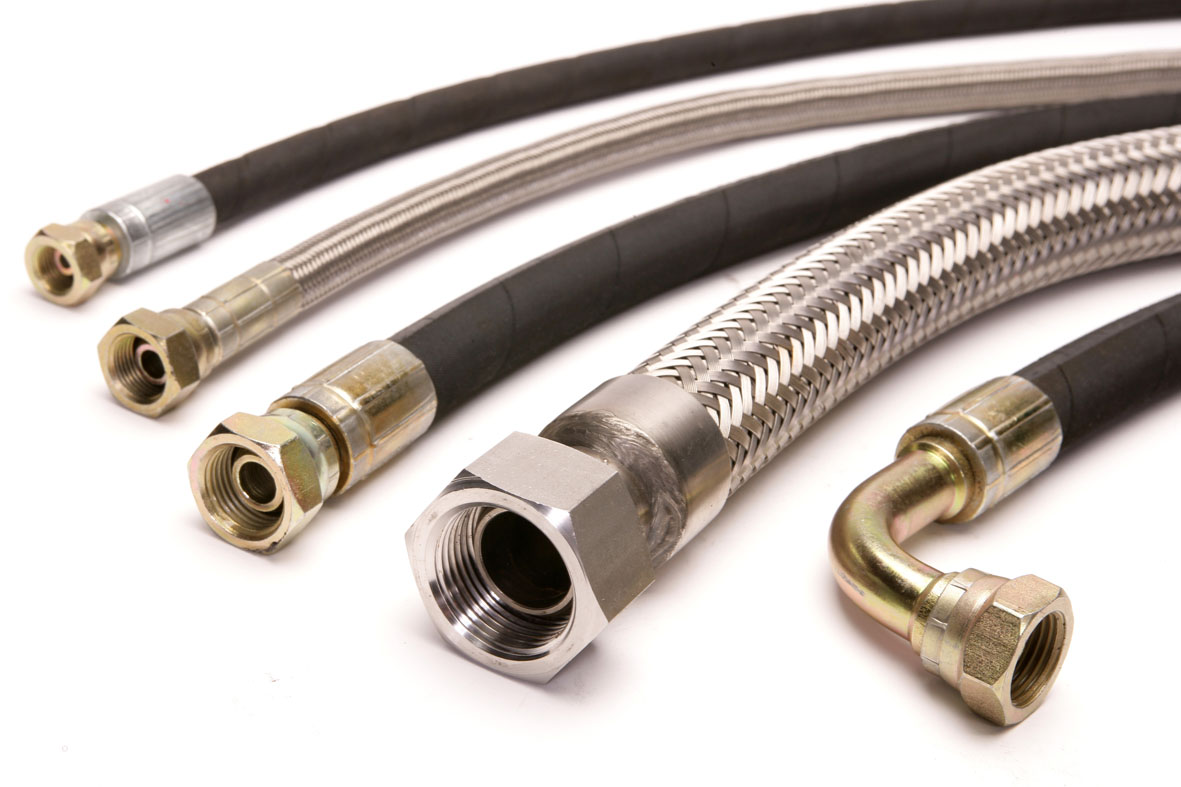

Hose Options Include

Hydraulic Hose

- 1 Wire
- 2 Wire
- Multispiral

Thread Patterns

- BSP
- JIC
- Light Series Metric
- Heavy Series Metric
- ORFS
Please be aware that we keep 1 and 2 Wire Hydraulic Hose up to 1" bore in stock. Anything above 1" or Multispiral will be NEXT DAY.
For more information and thread pattern measurement charts please see below.

BSP

British Standard Pipe Thread or BSP is one of the most widely recognised threads.

Whilst most common in the UK, BSP has been adopted by many countries worldwide, particularly in Europe.

There are two main types of BSP thread:
- British Standard Pipe Parallel Thread (BSPP)
- British Standard Pipe Tapered Thread (BSPT)



Size



Dash SizeTPI BSPP Male O.D (mm)BSPT Male O.D (mm) BSPP Female I.D (mm)BSPT Female I.D (mm)
1/8"-2289.69.58.68.4
1/4"-4191312.811.911.2
3/8"-61916.516.315.214.7
1/2"-81420.820.419.118.3
5/8"-101422.822.520.820.6
3/4"-121426.325.924.623.9
1"-161133.132.630.729.7
1 1/4"-201141.841.139.438.6
1 1/2"-241147.74745.544.5
2"-321159.558.657.456.4

JIC

Joint Industry Council Thread or JIC, is another popular thread commonly used for hydraulic systems.

Being used predominately in North America, JIC fittings have become increasingly popular throughout the global industrial and agricultural industries.
SizeDash Size Thread Male O.D (mm)Female I.D (mm)



Hex (mm)



3/8"624 UNF9.58.614
7/16"720 UNF 11.11017
1/2"820 UNF 12.711.617
9/16"918 UNF14.31319
3/4"1216 UNF19.117.622
7/8"1414 UNF22.220.527
1 1/16"1712 UNF2724.632
1 3/16"1912 UNF30.128.336
1 5/16"2112 UNF33.331.341
1 5/8"2612 UNF41.339.250
1 7/8"3012 UNF47.645.660
2 1/2"4012 UNF63.561.575

Light/Heavy Series Metric

Metric fittings come in a range of standardised thread sizes and are available in both a heavy and light series.

Typically used in Europe, Light/Heavy Series shares many characteristics with other British threads such as BSP.



Thread



Tube O/D LightTube O/D HeavyMale O/D (mm)Female I/D (mm)
M12x1.56mm/6LN/A1210.5
M14x1.58mm/8L6mm/6S1412.5
M16x1.510mm/10L8mm/8S1614.5
M18x1.512mm/12L10mm/10S1816.5
M20x1.5N/A12mm/12S2018.5
M22x1.515mm/15L14mm/14S2220.5
M24x1.5N/A16mm/16S2422.5
M26x1.518mm/18LN/A2624.5
M30x2.022mm/22L20mm/20S3028
M36x2.028mm/28L25mm/25S3634
M42x2.0N/A30mm/30S4240
M45x2.035mm/35LN/A4543
M52x2.042mm/42L38mm/38S5250

ORFS

ORFS or O-Ring Face Seal, is another popular type of fitting thread that is used in OEM machines worldwide.

Popular for it's high performance in creating and maintaining a high-pressure seal as well as having good vibration resistance.



Size



Dash Size Thread Male O.D (mm)Female I.D (mm) Hex (mm)
9/16"918 UNF14.21319
11/16"1116 UNF17.515.922
13/16"1316 UNF20.619.124
1"1614 UNF25.423.830
1 3/16"1912 UNF30.128.236
1 7/16"2312 UNF36.534.241
1 11/16"2712 UNF42.940.550
2"3212 UNF50.848.860

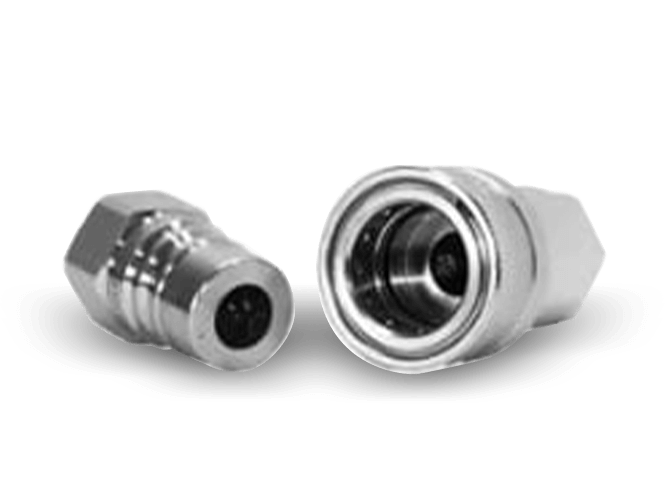

We also have a variety of Hose, Couplings & Valves Available!

Browse Our Range

Hydraulic Cylinder Manufacturer

We design and manufacture bespoke hydraulic cylinders to our client's size and application requirements.

Our in-house design team work with clients to create cylinder designs from the concept stage, producing detailed CAD drawings for the product to be manufactured in our purpose build factory in Nottinghamshire.
