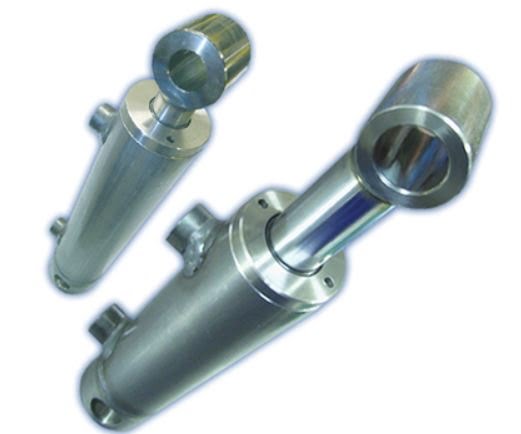

Pin Mounted Double/Single Acting Hydraulic Cylinder (bore/rod/stroke - 50x30x500)

SKU: NFR2300500 Category:

HFR/NFR series. Made from the highest quality materials and can be used to apply force and stroke in many engineering applications.

£144.73 +VAT

Dealer rates are available - please contact us for more information

Description

All standard cylinders are double acting and can be converted to single acting by the addition of a breather plug.

For custom cylinder sizes, please fill in our enquiry form or contact us today!

Please see below for an exploded view of the product

Please see below for an extended/retracted view of the product

Description

All standard cylinders are double acting and can be converted to single acting by the addition of a breather plug.

For custom cylinder sizes, please fill in our enquiry form or contact us today!

Please see below for an exploded view of the product

Please see below for an extended/retracted view of the product

Technical Information

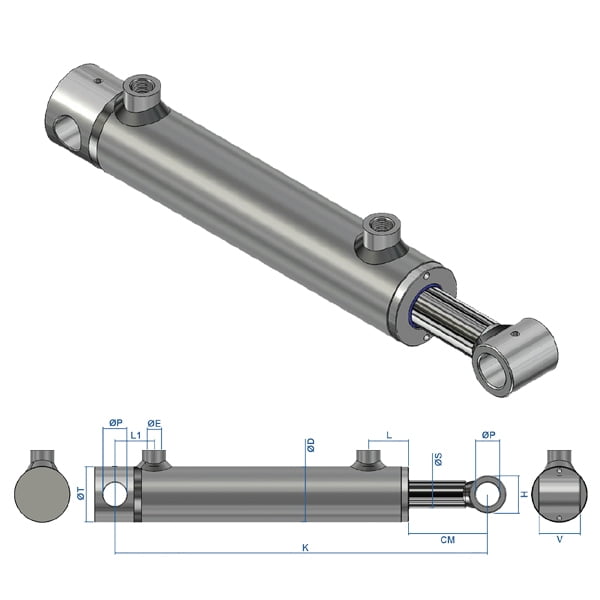

Please compare dimensions to the diagram.

Bore

ø(mm)

D

ø(mm)

S

ø(mm)

K

(mm)

Stroke

(mm)

E

ø(bsp)

L

(mm)

L1

(mm)

CM

(mm)

P

ø(mm)

H

ø(mm)

V

(mm)

T

ø(mm)

Weight

(kg)

50 60 30 700 500 3/8" 43 42 85 25.25 40 45 60 9.3
Product Code
NFR2300500
Maximum working pressure
210 bar (continuous) - 250 bar (intermittent)
Maximum operating speed
0.5m/s
Operating temperatures
+80° to -25°
Tube material
Steel – ST52.3 – DIN2393 – ISO H9
Chrome rod material
Steel – UNI C45 (CAE 1045) -25 MICRON (±5) – EN8 Grade
Weight
9.3kg

Download the technical sheet for more information.

Download

Additional information

Weight 9.3 kg
