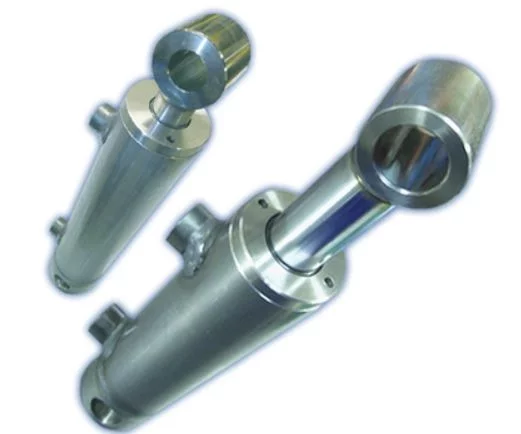

Pin Mounted Double/Single Acting Hydraulic Cylinder (bore/rod/stroke - 32x20x150)

SKU: HFR0200150 Category:

HFR/NFR series. Made from the highest quality materials and can be used to apply force and stroke in many engineering applications.

£77.62 +VAT

Dealer rates are available - please contact us for more information

Description

All standard cylinders are double acting and can be converted to single acting by the addition of a breather plug.

For custom cylinder sizes, please fill in our enquiry form or contact us today!

Description

All standard cylinders are double acting and can be converted to single acting by the addition of a breather plug.

For custom cylinder sizes, please fill in our enquiry form or contact us today!

Technical Information

Please compare dimensions to the diagram.

Bore

ø(mm)

D

ø(mm)

S

ø(mm)

K

(mm)

Stroke

(mm)

E

ø(bsp)

L

(mm)

L1

(mm)

CM

(mm)

P

(mm)

H

ø(mm)

V

(mm)

T

ø(mm)

Weight

(kg)

32 42 20 305 150 1/4" 33 35 51 ø16.2 30 35 40 2.4
Product Code
HFR0200150
Maximum working pressure
210 bar (continuous) - 250 bar (intermittent)
Maximum operating speed
0.5m/s
Operating temperature
+80° to -25°
Tube material
Steel – ST52.3 – DIN2393 – ISO H9
Chrome rod material
Steel – UNI C45 (CAE 1045) -25 MICRON (±5) – EN8 Grade
Weight
2.4kg

Download the technical sheet for more information.

Download

Additional information

Weight 2.4 kg
