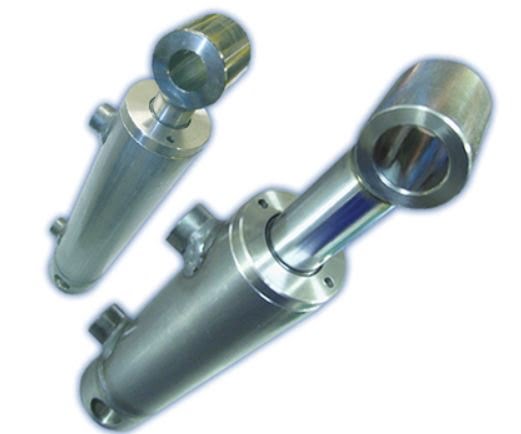

Pin Mounted Double/Single Acting Hydraulic Cylinder (bore/rod/stroke - 32x20x100)

SKU: HFR0200100 Category:

HFR/NFR series. Made from the highest quality materials and can be used to apply force and stroke in many engineering applications.

£65.69 +VAT

Dealer rates are available - please contact us for more information

Description

All standard cylinders are double acting and can be converted to single acting by the addition of a breather plug.

For custom cylinder sizes please contact our sales team.

Please see below for an exploded view of the product

Please see below for an extended/retracted view of the product

Description

All standard cylinders are double acting and can be converted to single acting by the addition of a breather plug.

For custom cylinder sizes please contact our sales team.

Please see below for an exploded view of the product

Please see below for an extended/retracted view of the product

Technical Information

Please compare dimensions to the diagram.

Bore

ø(mm)

D

ø(mm)

S

ø(mm)

K

(mm)

Stroke

(mm)

E

ø(bsp)

L

(mm)

L1

(mm)

CM

(mm)

P

ø(mm)

H

ø(mm)

V

(mm)

T

ø(mm)

Weight

(kg)

32 42 20 255 100 1/4" 33 35 51 16.2 30 35 40 2.1



Product Code
HFR0200100
Maximum working pressure
210 bar (continuous) - 250 bar (intermittent)
Maximum operating speed
0.5m/s
Operating Temperature
+80° to -25°
Tube Material
Steel – ST52.3 – DIN2393 – ISO H9
Chrome rod material
Steel – UNI C45 (CAE 1045) -25 MICRON (±5) – EN8 Grade
Weight
2.1kg

Download the technical sheet for more information.

Download

Additional information

Weight 2.1 kg
