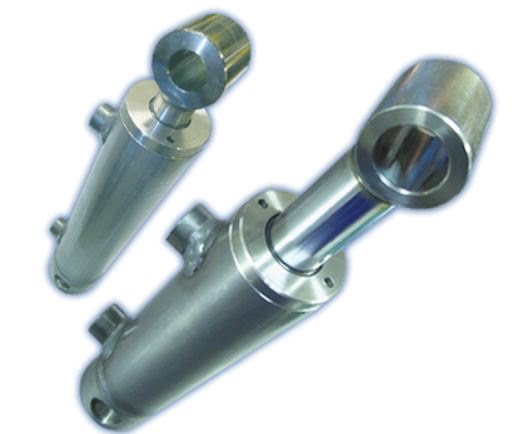

Pin Mounted Double/Single Acting Hydraulic Cylinder (bore/rod/stroke - 25x16x200)

SKU: HFR0160200 Category:

HFR/NFR series. Made from the highest quality materials and can be used to apply force and stroke in many engineering applications.

£77.56 +VAT

Dealer rates are available - please contact us for more information

Description

All standard cylinders are double acting and can be converted to single acting by the addition of a breather plug.

For custom cylinder sizes, please fill in our enquiry form or contact us today!

Please see below for an exploded view of the product

Please see below for an extended/retracted view of the product

Description

All standard cylinders are double acting and can be converted to single acting by the addition of a breather plug.

For custom cylinder sizes, please fill in our enquiry form or contact us today!

Please see below for an exploded view of the product

Please see below for an extended/retracted view of the product

Technical Information

Please compare dimensions to the diagram.



Bore

ø(mm)

D

ø(mm)

S

ø(mm)

K

(mm)

Stroke

(mm)

E

ø(bsp)

L

(mm)

L1

(mm)

CM

(mm)

P

ø(mm)

H

ø(mm)

V

(mm)

T

ø(mm)

Weight

(kg)

25 35 16 310 200 1/4" 33 22 31 12.1 25 25 35 1.7



Product Code
HFR0160200
Maximum working pressure
250 bar (intermittent)
Maximum operating speed
0.5 mtr/sec
Maximum stroke
1000mm
Operating temperature
+80℃ to -25℃
Tube material
Steel ST52.3 - DIN2393 - ISO H9
Chrome rod material
Steel UN C45 - 25 micron (EN8 Grade)
Weight
1.7kg

Download the technical sheet for more information.

Download

Additional information

Weight 1.7 kg
