Pin Mounted Double/Single Acting Hydraulic Cylinder (bore/rod/stroke - 70x40x900)

SKU: NFR4400900 Category:

HFR/NFR series. Made from the highest quality materials and can be used to apply force and stroke in many engineering applications.

£273.32 +VAT

Please call for availability: 01636 812 674

Dealer rates are available - please contact us for more information

Description

All standard cylinders are double acting and can be converted to single acting by the addition of a breather plug.

For custom cylinder sizes, please fill in our enquiry form or contact us today!

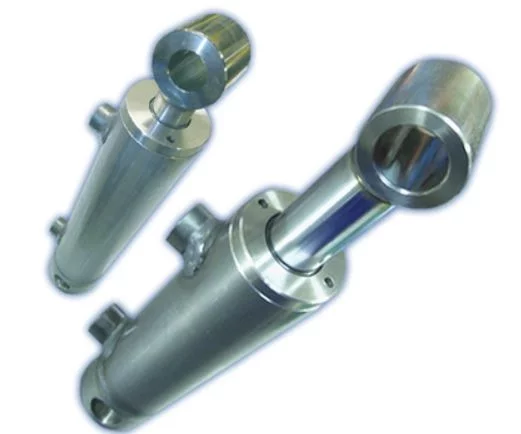

Pin Mounted Double/Single Acting Hydraulic Cylinder (bore/rod/stroke - 70x40x900)
Pin Mounted Double/Single Acting Hydraulic Cylinder (bore/rod/stroke - 70x40x900) - Image 2
  1. Pin Mounted Double/Single Acting Hydraulic Cylinder (bore/rod/stroke - 70x40x900)
  2. Pin Mounted Double/Single Acting Hydraulic Cylinder (bore/rod/stroke - 70x40x900) - Image 2

Description

All standard cylinders are double acting and can be converted to single acting by the addition of a breather plug.

For custom cylinder sizes, please fill in our enquiry form or contact us today!

Technical Information

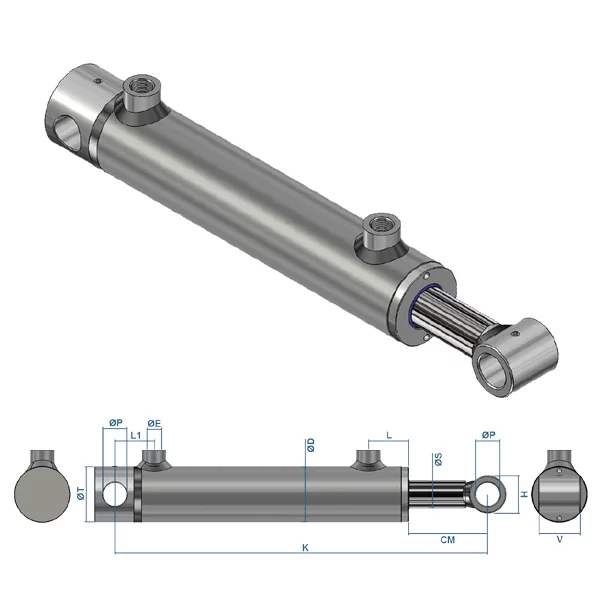

Please compare dimensions to the diagram.

Bore

ø(mm)

 D

ø(mm)

 S

ø(mm)

 K

(mm)

 Stroke

(mm)

 E

ø(bsp)

 L

(mm)

 L1

(mm)

 CM

(mm)

 P

ø(mm)

 H

ø(mm)

 V

(mm)

 T

ø(mm)

 Weight

(kg)
70 80 40 1110 900 3/8" 50 46 82 30.25 50 55 80 23.4
Product Code
NFR4400900
Maximum working pressure
210 bar (continuous) - 250 bar (intermittent)
Maximum operating speed
0.5m/s
Operating temperatures
+80° to -25°
Tube material
Steel – ST52.3 – DIN2393 – ISO H9
Chrome rod material
Steel – UNI C45 (CAE 1045) -25 MICRON (±5) – EN8 Grade
Weight
23.4kg

Download the technical sheet for more information.

Download
