Technical Information

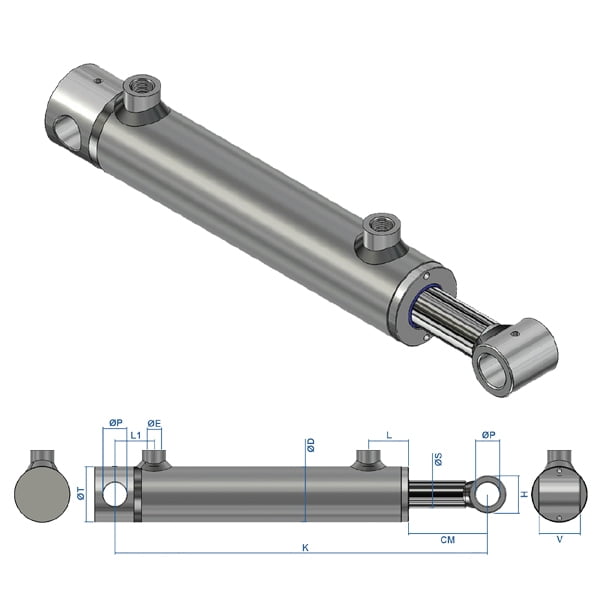

Please compare dimensions to the diagram.
|
Bore ø(mm) |
D
ø(mm) |
S
ø(mm) |
K
(mm) |
Stroke
(mm) |
E
ø(bsp) |
L
(mm) |
L1
(mm) |
CM
(mm) |
P
ø(mm) |
H
ø(mm) |
V
(mm) |
T
ø(mm) |
Weight
(kg) |
| 25 | 35 | 16 | 210 | 100 | 1/4" | 33 | 22 | 31 | 12.1 | 25 | 25 | 35 | 1.2 |
| Product Code |
| HFR0160100 |
| Maximum working pressure |
| 250 bar (intermittent) |
| Maximum operating speed |
| 0.5 mtr/sec |
| Maximum stroke |
| 1000mm |
| Operating temperature |
| +80℃ to -25℃ |
| Tube material |
| Steel ST52.3 - DIN2393 - ISO H9 |
| Chrome rod material |
| Steel UN C45 - 25 micron (EN8 Grade) |
| Weight |
| 1.2kg |
Download the technical sheet for more information.
